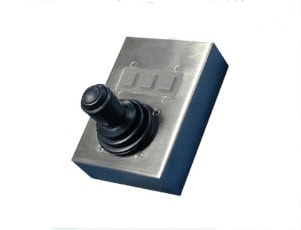

MX-AJ Series Analog Joysticks


The Motion X Corporation Analog Joystick (MX-AJ Series) is ideally suited for manually interfacing with motor driven positioning systems. The MX-AJ Series uses spring centered potentiometers and inductive joystick technology with no moving electronic parts or magnets. Each model also has user configurable switches, integrated drive electronics, and is contained in a sealed enclosure.


# of Axis

1 to 4 Axis


3.00 in


4.00 in


3.75 in

Input Voltage (DC)

5 V


600 mA


0 to 2.5VDC (1.25VDC Center) (each axis)

Technical Information

4 Buttons (user configurable)
(3 latching switches and one momentary contact push button switch)
Suggested button usage
1) Teach
2) Axis Select
3) Velocity
4) Release

Cable is supplied with flying leads or customer specified connector.

Motion X Corporation’s line of MX-AJ Series Analog Joysticks is extremely flexible and is available in many configurations that will suit your application’s requirements. We invite you to please contact our sales department for more information regarding our line of MX-AJ Series Analog Joysticks.


The MX-AJ Series has a diverse range of applications in the motion control industry that require or could benefit from the ability to manually interface with a motor driven positioning system. Some examples of industries that use the MX-AJ Series are industrial, medical, laser processing, optical inspection, semiconductor and food preparation.
